Description

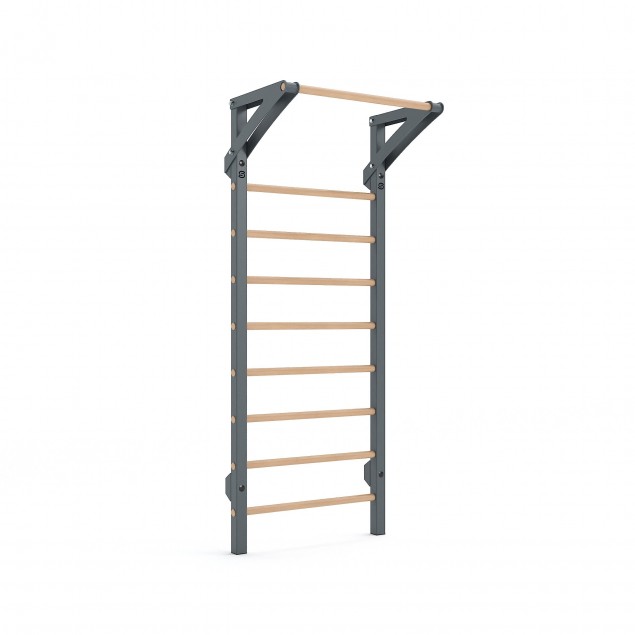

The Functional Wall Bars 9102, also known as Stall Bars in the American context, is a 9-round-rung wall bar featuring an extended top rung (60 cm). This design optimizes suspension exercises, such as pull-ups or movements with the Flying (Code 2092).

The beech wood rungs, with a diameter of 38 mm, are intentionally less ergonomic to make grip training more challenging and effective.

The “Pro” suffix identifies an advanced version compared to traditional all-wood models. To ensure high-quality standards, especially for professional use, our wooden models, such as the 9100 and 9099, are handcrafted in the factory. This process guarantees precise fits and gluing but has some limitations: transporting the product fully assembled results in higher logistical costs, positioning difficulties, and increased risk of damage.

With the Functional Wall Bars 9102, we have overcome these challenges by offering a high-quality wall bar that can be assembled on-site without compromising structural integrity. The metal uprights, laser-cut with precision, ensure a safe and stable assembly directly at the user’s location.

Installation Guidelines and Precautions:

• To facilitate transport and positioning, the wall bar is delivered with its main components disassembled. The assembly process is simple and intuitive, ensuring quick and secure installation.
• Wall mounting, although straightforward, must be performed by a professional technician who will assess the wall type, its condition, and, most importantly, its thickness to determine the appropriate anchor length. Generally, 4 anchors with M10 screws (100 mm + additional length for wall anchoring) can be used. The anchor must support a load of 300 kg for the upper fixings and 150 kg for the lower fixings.
• Anchors are not included with the 9102 model.
• The 9102 wall bar does not require L-brackets for mounting, as the uprights are pre-drilled to accommodate wall anchors.
• Floor support: It is essential that the base of the wall bar rests on the floor so that the wall anchors function primarily as anti-tilt supports rather than bearing the entire weight of the equipment and user.

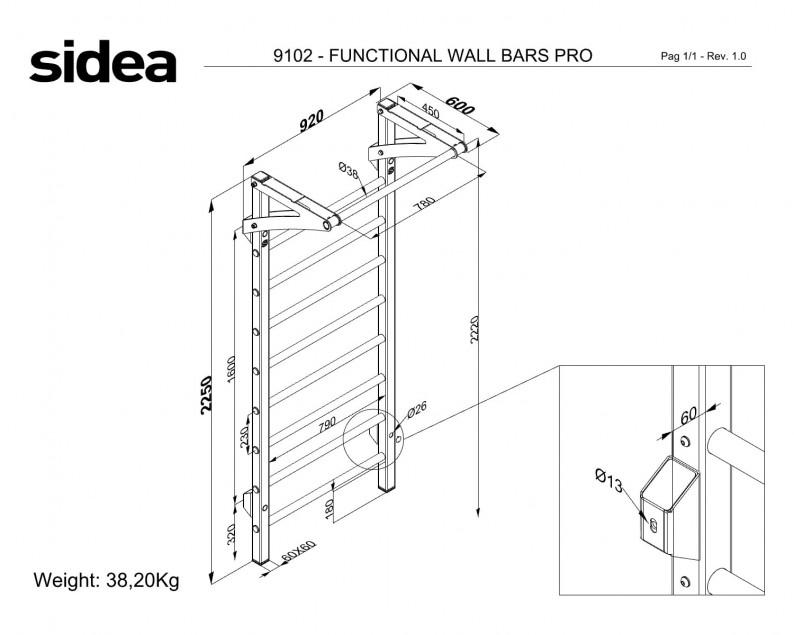

Dimensions: 920 x 2250 mm
Weight: 38 kg
Maximum load: 110 kg
