Description

Solid Rock’s professional weight machines stand out for their design and innovation. They have a careful aesthetics and are equipped with the latest technology.

In the Solid Rock line of strength machines from Bodytone, our brand is committed to a completely renewed design where curves and design prevail along with corporate color, green, which gives it that sporty and elegant look.

Solid Rock equipment uses technology from the automotive industry so that the structure and paint can last up to 10 years or more. A guarantee of quality, resistance and durability.

Additional information

DIMENSIONS

153 x 157 x 115 cm

WEIGHT

135 Kg

LOADING CAPACITY

310 mm support brackets for 6 Bodytone discs of 20 kg per arm (up to 240 kg for training).

USER HEIGHT

Our machines are designed for a very broad spectrum of users, allowing the regulation of them to adapt to different user statures, from 150 to 200 cm approximately.

STRUCTURE

110x52 mm Steel pipe, 3 mm thick as per UNE EN 10219, quality s-275-J0H. Enriched and optimized to maintain a constant section in the bending process, avoiding fragile areas with low breakage rate. Cold bending process by 4-roller system to avoid deformation during the process, keeping its physical characteristics throughout the piece.

PAINTING PROCESS

3 layers of paint. Steel pickling and stabilized by immersion of the parts in different degreasing solutions to ensure a perfect and complete cleaning of the base material. Antioxidant primer to ensure adquate isolation of internal oxidation and good paint adhesion. 2 final coats of epoxy paint.

DESIGN PROCESS

Ergonomic and biomechanical study under our associated professional athletes. After a long design process; from the drawing of the sketch, prototypes making and tested by athletes our products are released to the market.

WELDING

Perimeter closing welding in structural points and union plates.

ASSEMBLY PROCESSES

10 mm plate-against Plate system, to avoid looseness and torsion in maximum effort areas. Ergonomic and biomechanical research optimized for every exercise.

AXLES

10 mm thickness plates cut by laser with another 10 mm plate for reinforcement,for a smooth movement withour looseness or torsion produced for the continouos usage or loading.

BEARINGS

SFK double tapared roller bearing, allocated in closed bushing ensuring a constant direction movement.

SEAT AND BACK

Leather simile perspiration resistant, antibacterial and antiallergenic. Back pad,seat pad and rolls in foam 80 kg/m3 density that provides an optimum support for your training and a uniform contact. Resistant to deformation.

GRIPS

Anodized Aluminium, knurled for better grip.

ADJUSTMENTS

Chromed seat post adjustable with 8 laser numbered positions.

OTHERS

Plate supports made in burnished steel, providing more stability to the machine. Turned Aluminium endings. Screw hardness 10.9. Regulation system by a single bolt made of techno polymer with 750 shear rate. 4 non-slip rubber bases.

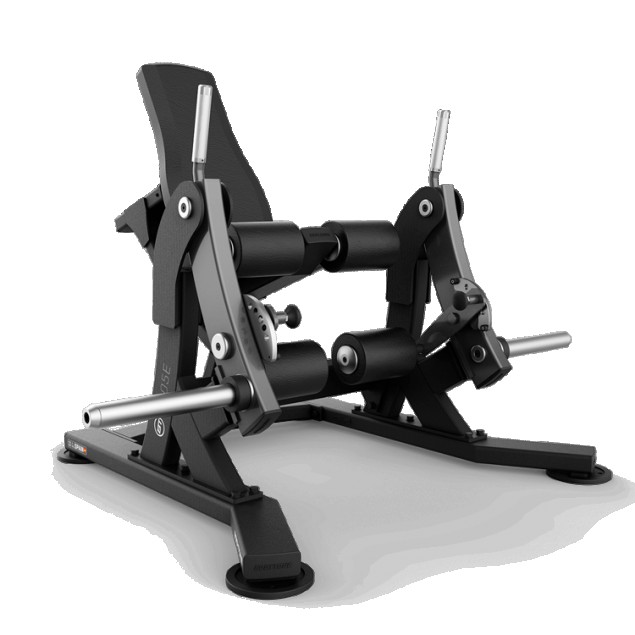

Bodytone Solid Rock-E Leg extension
