Description

ATX ^®  RIG 4.0 - ring eyelet with snap hook

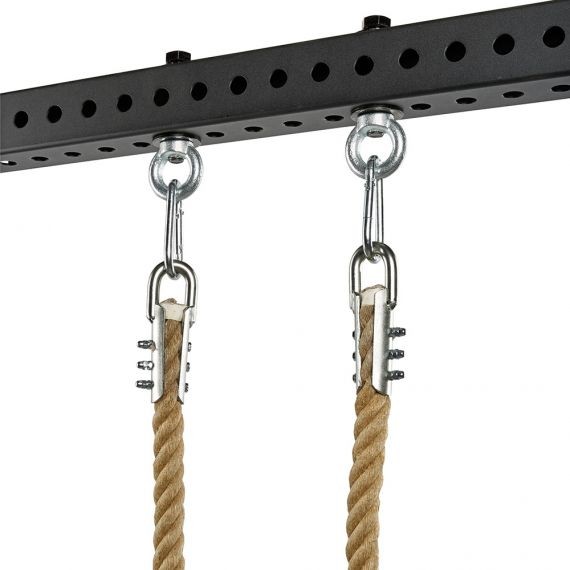

These ring eyelets are used to hang up or put down climbing ropes, gymnastic rings, suspension trainers, tubes, resistance bands, grips and any other accessories.

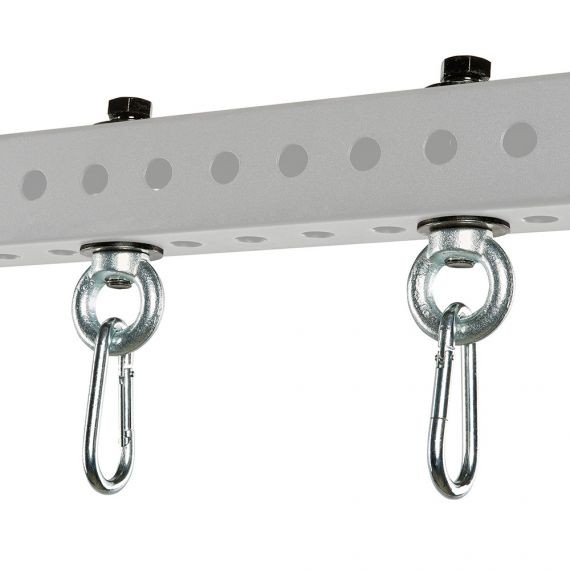

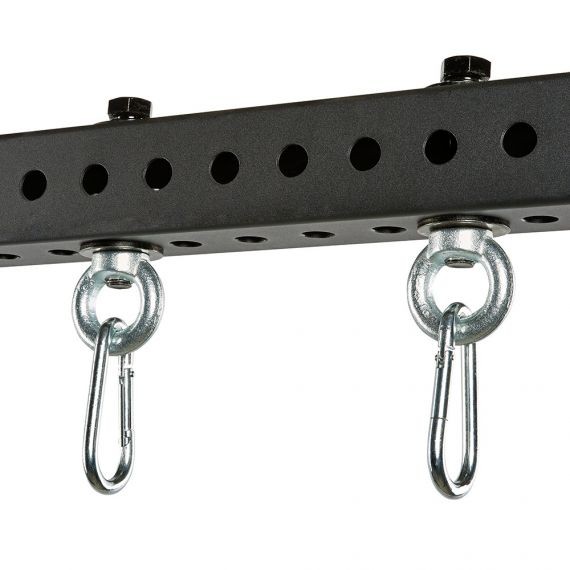

Suitable for all ATX 4.0 RIGs and all ATX 800 Series Power Racks, the eyelets are simply attached to the cross members or the posts of the RIGs and racks using an M20 screw. The ring eyelet has an outer diameter of approx. 72 mm and an inner diameter of approx. 35/38 mm. The wire diameter is approx. 16 mm. The snap hook is 120 mm long and approx. 56 mm wide. The wire diameter is approx. 10.5 mm. The load capacity of the snap hook is 450 kg. The actual load-bearing capacity of the system depends on the load-bearing capacity of the substructure, i.e. the RIG or rack, post or cross member to which the eyes are attached.

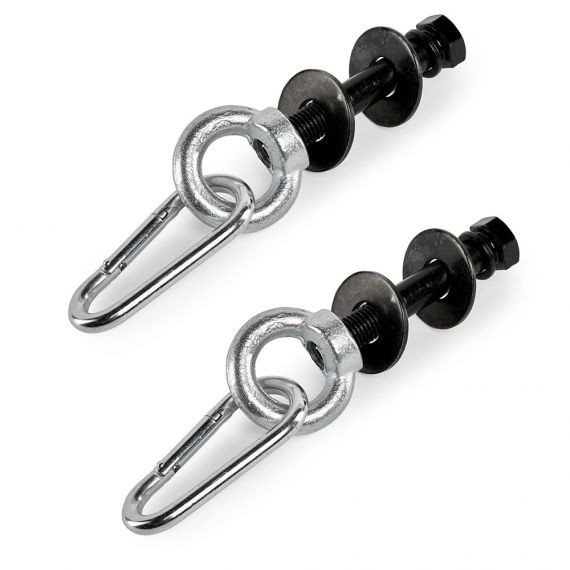

Scope of delivery:
2 screws M20 x 120 mm, black galvanized
4 large washers, black galvanized
2 spring lock washers, black galvanized
2 ring eyelets, galvanized
2 snap hooks 120 mm, galvanized
