Description

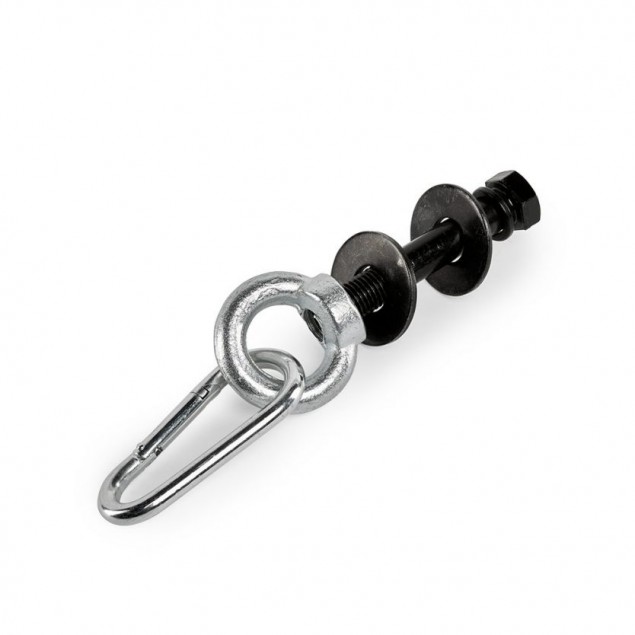

ATX ^® RIG 4.0 - eyelet with carabiner

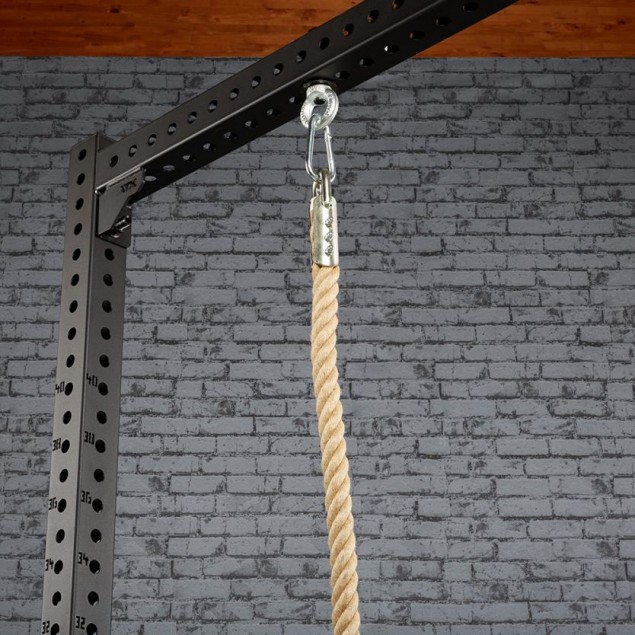

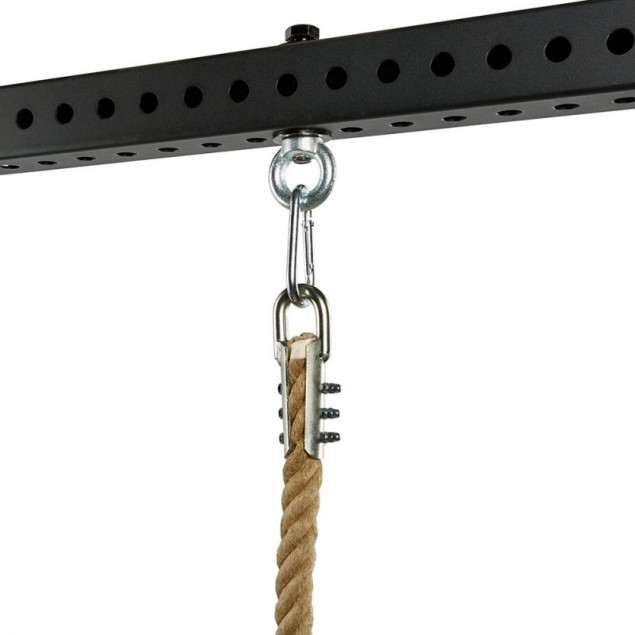

This ring eyelet is used to hang up or store climbing ropes, gymnastic rings, suspension trainers, tubes, resistance bands, handles and any other accessories.

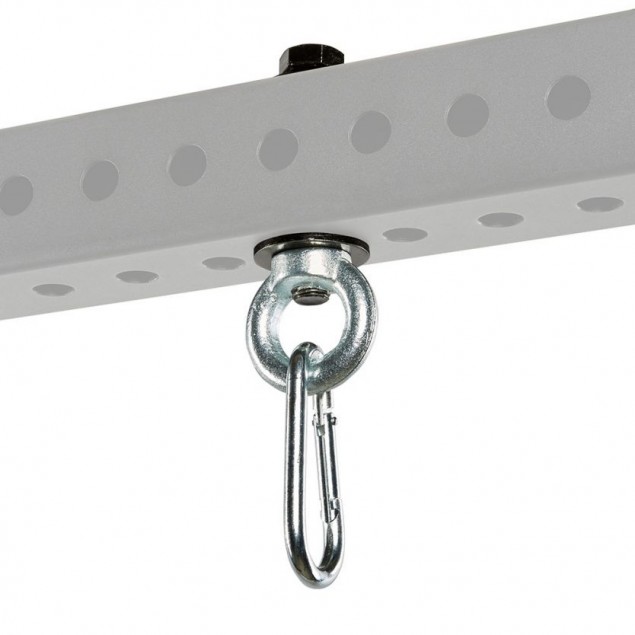

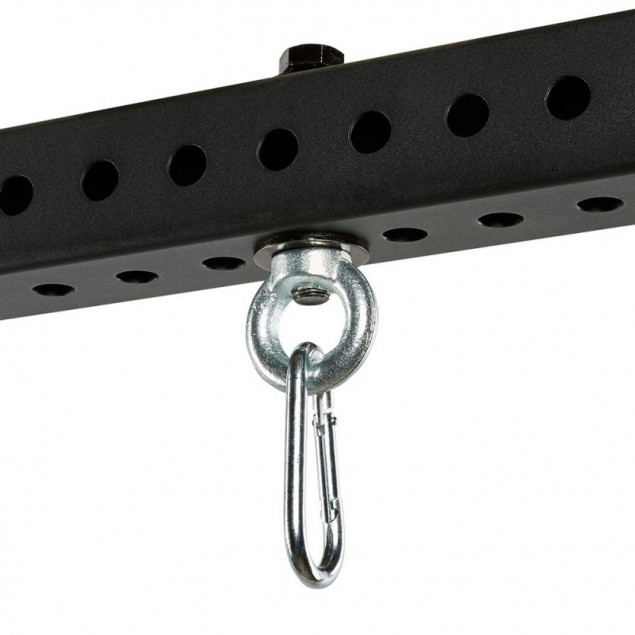

Suitable for all ATX 4.0 RIGs and all ATX 800 Series Power Racks, the eyelet is easily attached to the cross members or the posts of the RIGs and racks using an M20 screw. The eyelet has an outer diameter of approx. 72 mm and an inner diameter of approx. 35/38 mm. The wire diameter is approx. 16 mm. The snap hook is 120 mm long and approx. 56 mm wide. The wire diameter is approx. 10.5 mm. The load capacity of the carabiner is 450 kg. The actual load capacity of the system depends on the load capacity of the substructure, i.e. the RIG or rack, post or cross member to which the eyelet is attached.

Scope of delivery:
1 screw M20 x 120 mm, black galvanized
2 large washers, black galvanized
1 spring ring safety device, black galvanized
1 ring eyelet, galvanized
1 snap hook 120 mm, galvanized
