ATX® Cantilever - 110
cantilever arm for RIG System 4.0
The ATX® Cantilever was developed to expand our RIGs in a simple and cost-effective way, thus increasing their versatility.

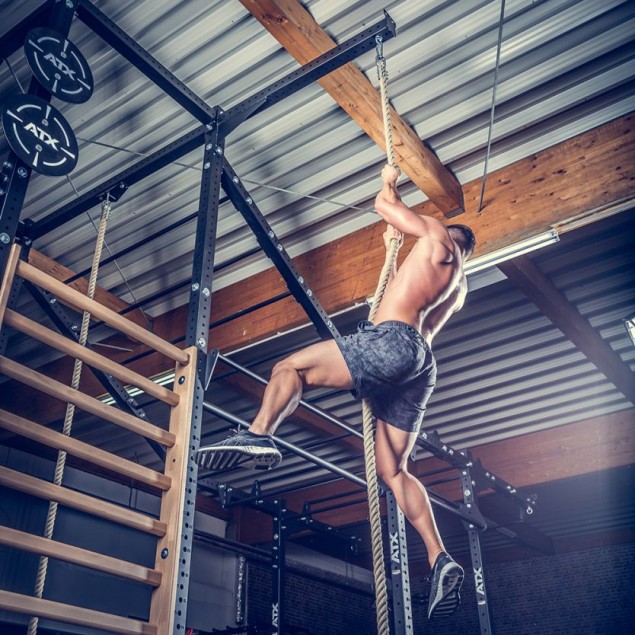

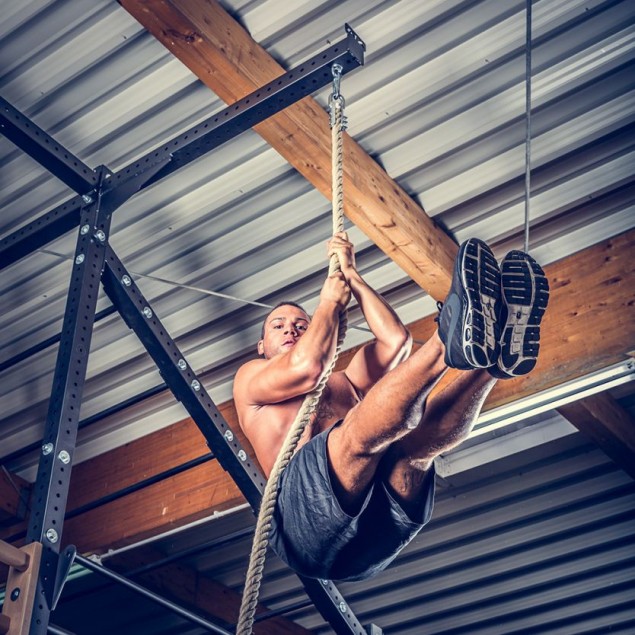

With the cantilever, the RIG can be extended, for example, to expand a monkey bar course (2 pieces required). It is also ideal for hanging punching bags, suspension trainers, etc. on it. If the ATX® Cantilever is attached to the RIG in a higher area, it is used to attach gymnastic rings and climbing ropes. (Note: If the RIG is to be equipped with climbing ropes and/or gymnastic rings, we recommend ordering the uprights at the maximum height of 4.21 m in order to be able to use the rings and ropes optimally.) The cantilever overhang is 110 cm.

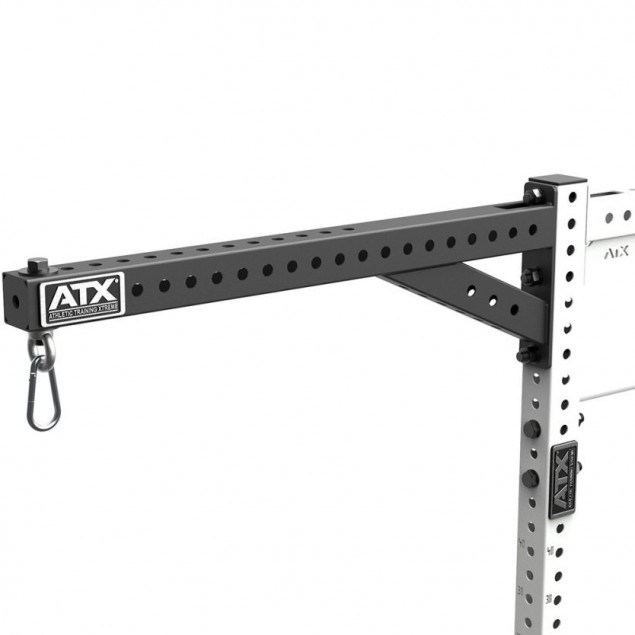

The manufacturing process using "laser cutting" and "robot welding" guarantees a consistently high quality of the ATX® cantilever. Manufactured from 80 mm x 80 mm x 3.0 mm profile steel tube and equipped with a stiffening strut and an 8 mm thick mounting plate, the ATX® cantilever can absorb enormous loads that are far in excess of the loads that occur in everyday training. The hole pattern has a center distance of 50 mm with a drill hole diameter of 21 mm.
The weight of the cantilever is 11 kg without screws, eyelets and carabiners.
- certified according to EN 20957 Class S -
- quality product designed in Germany -
The ATX® cantilever is delivered per piece. The scope of delivery includes a set of black galvanized 20 mm thick screws and a ring eyelet with carabiner for attaching climbing ropes and other various accessories. Furthermore, two ATX® Logo Plates, which can simply be clipped in at any appropriate point on the profile tube. To attach gymnast rings, the ATX® Rings & Ropes Hanger must be ordered separately. (2 pieces, item no.: ATX-EXR)
ATTENTION! The ATX® Cantilever -110 is only compatible with ATX® 4.0 RIG system parts and ATX® Power Racks of the PRX-800 series.
Important safety instructions for exercises with climbing ropes and gymnastic rings!
The RIG must always be firmly bolted to the floor. In the fall area, attachments such as J-hooks, safeties or weight racks must be removed from the RIG. The area under the climbing ropes / gymnast rings must be clear. Always use fall protection mats!
All components are black powder-coated (RAL 9005).
|Show bundle options
|RAL 9005 black
|Profile steel tube 80 x 80 x 3.0 mm
