Description

The ATX ^® Power Bars are made of high-quality alloyed special steel / spring steel precisely manufactured dumbbell bars in a high-end finish.
The bars have extremely high tensile and compressive strength with simultaneous elasticity.
In this way, the rods can be deformed up to a certain tension (elasticity limit), in
order to then return elastically to the initial state without permanent deformation.
The decisive factor for this is the optimal high-quality alloy made of chrome, molybdenum, silicon and manganese, among others.
Whether for weightlifting or powerlifting, ATX ^® dumbbell bars withstand even the most extreme demands and thus
meet the highest demands.

The ATX ^® Barbell bars are therefore unmatched in this price / performance segment!

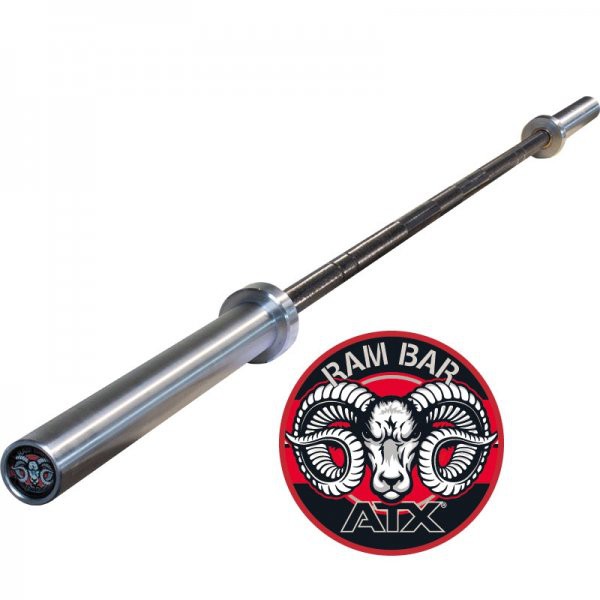

ATX ^® RAM BAR

Material - special steel according to EN 102775-5
Tensile strength (Tesile Strength): 206000 psi = 206 K (K / KSI = kilopound per square inch)
Combination coating - rod coated with black oxide, mounts abrasion-resistant hard chrome plating
extra handy precision knurling with reach marking
Holders Ø 50 mm, rotatable - with maintenance-free precision brass bushes
Suitable for all commercially available weight plates with a 50/51 mm hole
High- quality encapsulated end faces, with ATX ^® color code logo: RAM BAR

Total length: 2200 mm
Inner handle dimensions: 1310 mm
Handle diameter: 28.5 mm
Weight: 20 KG
Max. Load capacity: 700 KG

The specified maximum load capacity of the dumbbell is only given under optimal conditions!
For exercises with a wide grip, such as the bench press, the theoretically highest load on the dumbbell is possible.
In the case of centralized load transfer, such as knee bends, the max. Resilience!
If the load limits and areas of application specified in the tables are not observed, the dumbbells may be damaged!
Exchange and guarantee services are excluded in this case!
Please refer to the following table for the application-related load limits!

Type of load transfer	Maximum permissible weight load of the dumbbell	Sample exercise
Wide handle width:	700 KG	Bench press
Medium handle width:	600 KG	Deadlift
middle / narrow grip width:	500 KG	Squats

Application area
Fitness:	YES
Strength training:	YES
Weightlifting / Powerlifting:	YES

ATX ^® offers first-class, tested and proven equipment for professional use.
The ATX ^® dumbbell bars undergo the following material tests in a German independent test laboratory:

Tensile test according to DIN EN ISO 6892-1
Tensile test acc. To DIN EN ISO 6892-1
Hardness Rockwell acc. DIN EN ISO 6508-1
Hardness Rockwell acc. DIN EN ISO 6508-1

The
dumbbell bar has the following values: Tensile strength (Tesile Strength): 206000 psi = 206 K (K / KSI = kilopound per square inch) = / corresponds to 1420 N / mm2 HRC / surface hardness: 44.0
