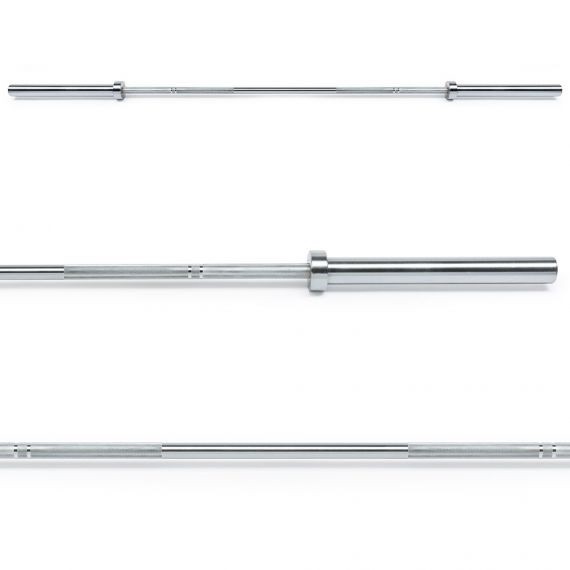

ATX® PRO Power Bearing Bar - Lift & Drop Bar Chrome 220 cm (700 kg)
€340
Product Code: 104LH-50-ATX-NB
Brand: ATX
PRE ORDER
Delivery within 4-8 weeks (needs to be paid in advance)

Description

Total Length: 2200mm | Internal Length: 1310mm | Load Capacity: 700Kg | Weight: 20Kg

The ATX ® Power Bars are made from high-quality alloyed special steel / spring steel, precisely barbell bars with a high-end finish. The bars have an extremely high tensile and compressive strength with simultaneous elasticity.Thus, the bars can be deformed up to a certain tension (elastic limit) in order to then return elastically to the initial state without permanent deformation. The decisive factor here is the optimal, high-quality alloy made of chromium, molybdenum, silicon and manganese. Whether for weightlifting or powerlifting, ATX ® barbell bars can withstand even the most extreme demands and therefore meet the highest demands.

Whether is Functional Fitness, Performance, Weightlifting or powerlifting, ATX ® barbell bars meet even the most extreme requirements and highest demands.

The ATX ® barbell bars are therefore unmatched in this price / performance segment!

ATX ® Power Bearing Bar

  • Material - special steel according to EN 102775-5
  • Tensile strength (Tesile Strength): 206000 psi = 206 K (K / KSI = Kilopound per Square inch)
  • abrasion-resistant hard chrome plating

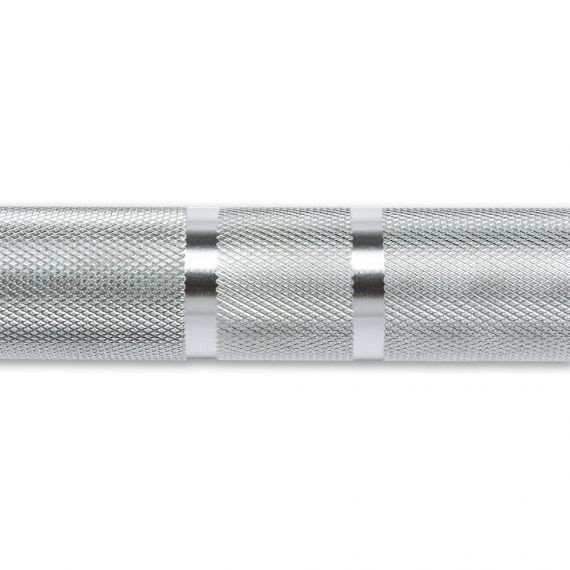

  • Extra handy precision knurling with double grip width marking

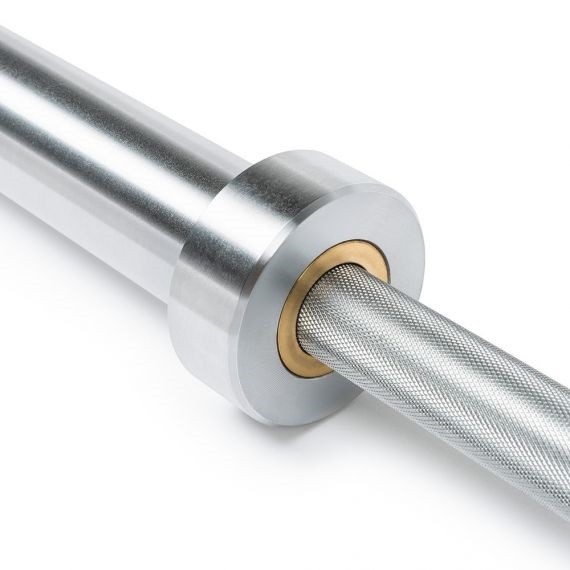

  • Holders Ø 50 mm, rotatable - with ball bearings
  • Suitable for all commercially available weight plates with a Ø 50/51 mm hole

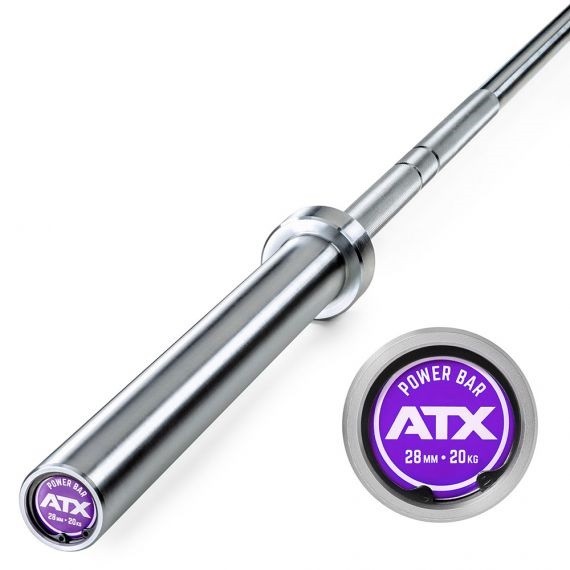

  • End caps encapsulated with high quality, with ATX ® color code logo: Power Bearing Bar
  • Overall length: 2200 mm
  • Handle inside dimension: 1310 mm
  • Handle diameter: 28 mm
  • Weight: 20 KG
  • Max. Resilience: 700 KG

The specified maximum load capacity of the barbell is only given under optimal conditions!

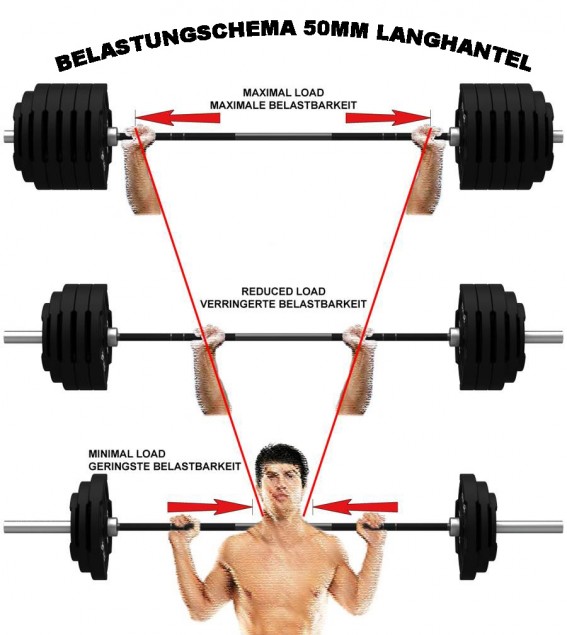

In exercises with a wide grip such as bench press, the theoretically highest load on the barbell is possible.
In the case of selective load transfer, such as squats, the max. Resilience!
If the load limits and areas of application specified in the tables are not complied with, damage to the dumbbells is possible!
Exchange and warranty services are excluded in this case!
Please refer to the table below for the application-related load limits!

Type of load transfer  Maximum permitted weight loading of the barbell     Example exercise
Wide grip width: 700 KG                   Flat bench press
Medium grip width: 600 KG     Deadlifts
middle / narrow grip width:     500 KG     Squats



Field of application
Fitness:  YES
Strength training:  YES
Weightlifting / Powerlifting:  YES



ATX ® offers first-class, tested and proven equipment for professional use.
The ATX ® barbell bars go through the following material tests in a German independent test laboratory:

  • Tensile test acc. DIN EN ISO 6892-1
    Tensile test acc. To DIN EN ISO 6892-1
  • Rockwell hardness acc. DIN EN ISO 6508-1
    Hardness Rockwell acc. DIN EN ISO 6508-1

The barbell has the following values:

Tensile strength: 206000 psi = 206 K ( K / NSI = Kilo Pound per square inch) | Corresponds to 1420 N/mm2 | HRC / Surface hardness: 44.0
