ATX Lat Pulldown option LTO-520 Plate Loaded
Product Code: 104ATX-LTO-520
Brand: ATX
Delivery within 1-5 working days

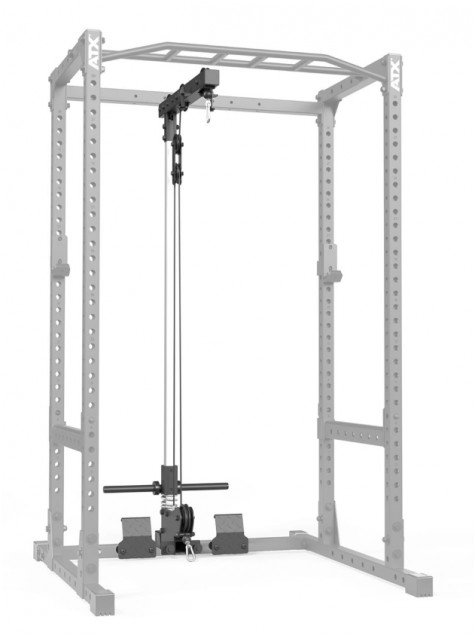

ATX ® lat pulldown option LTO-520 - Plate Load


The lat pulldown device ATX-LTO-520 is an inexpensive yet highly functional lat pulldown option with a weight plate holder for attachment to the equipment mentioned above.
Despite its light construction, the device is very robust and can withstand loads of up to 140 kg! Due to the direct weight ratio of 1: 1 there is no loss of load / no pulley effect! Pulling exercises can be carried out using the upper and lower pulley without modification. The weight sled runs over a chrome-plated square tube and is provided with special sliding strips, the pulleys are ball-bearing and the plastic-coated steel cables are stretch-free, this ensures a smooth and jerk-free run. The pre-tensioning of the pull ropes can be precisely adjusted using the pulley unit. Two clamping plates for supporting your feet during rowing exercises while sitting are also included in the scope of delivery, as is an extension chain for attaching various pull handles.


Quality Products Designed in Germany - Certified according to EN 20957 I.II.IV Class H

  • Heavy load - up to 140 kg
  • no loss of load due to direct weight transmission 1: 1
  • Upper and lower pulley can be used without modification
  • Good jerk-free running properties thanks to the sliding strip guide and ball-bearing rope pulleys
  • Stretch-free steel ropes with black plastic protective coating
  • Incl. foot plates for support when rowing while sitting
  • Including extension chain for hanging various pull handles and for setting the optimal pulling position
  • incl. 3 snap hooks
  • Weight plate holder standard Ø 30 mm x L 21.5 cm, optionally with our adapters to Ø 50 mm can be easily and quickly upgraded
  • The stretched dimension is 203 cm (height from floor to ring eyelet / upper roller)
  • Total height 218 cm
Show bundle options No
brand ATX
series 500
category Accessories / options
Delivery unit piece
Resilience 140 kg
empty field
Plug-in weights ---
Weight plate holder 30 mm standard
optional 50 mm Yes
empty field
Lift dimension 161 cm
Stretching measure 203 cm
empty field
Furnishing: Incl.
Footrest Steel sheets
Knee pads ---
empty field
width ---
depth ---
height 218 cm
material 60 x 60 x 2 mm
own weight 22 kg
colour Black semi-gloss fine structure
Certification EN 20957 I.II.IV - H
