Description

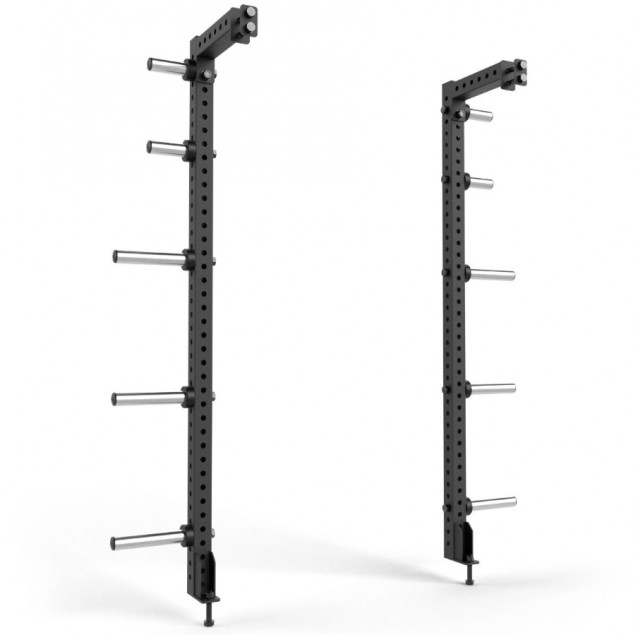

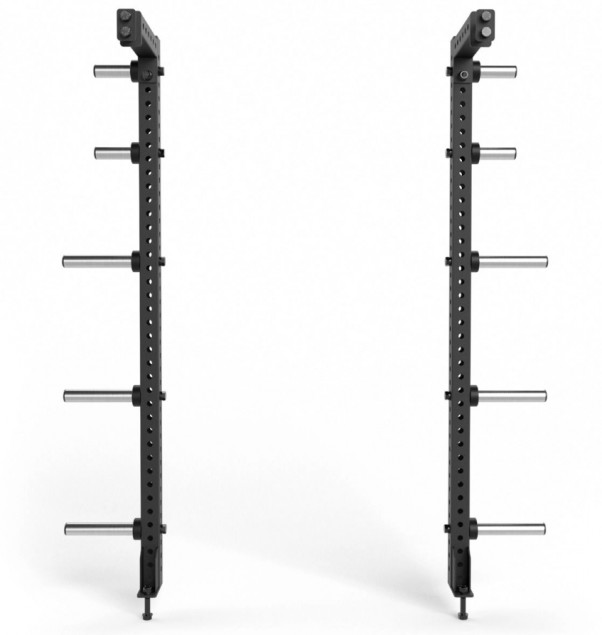

Storage Extension for ATX® ^Half Rack 780

ADDITIONAL OPTION FOR YOUR HALF RACK ATX-HRX-780
STORAGE - DISC SHELF WITH 10 PLATE PINS Ø 50 mm

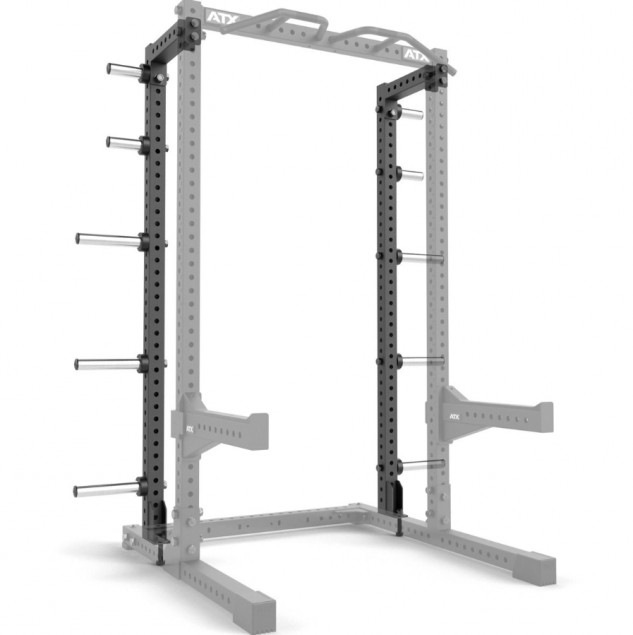

This practical storage extension ensures perfect organization and quick access to your weight plates – everything is always within easy reach when you need it. Assembly is quick and easy: the extension is simply attached to the back of the half rack and securely screwed into place.

The package includes ten high-quality loading pins in two different lengths, with a storage length of 130 mm and 250 mm respectively . All pins are flexibly adjustable in height to precisely position your weight plates as needed.

OVERVIEW

Easy mounting on all ATX half racks 780
The placement of the weight plate pins can be freely selected in 5 cm increments using the hole grid system.
10 Weight Plate Pins, in 2 lengths:
4 x 130 mm usable length + 6 x 250 mm usable length
Suitable for all weight plates with a Ø 50/51 mm bore.
chrome-plated mounts
with stop buffer Ø 8 cm x 3 cm
Heavy-duty, with a load capacity of up to 200 kg per weight plate pin
Suitable for all 780 series half racks
Quality Product - German Engineering
with studio certification - according to EN 20957 I.II.IV Class S

DATA SHEET

More information
SKU	ATX-HRX-780-EXT
brand	ATX
matching the series	700
Category	Rack accessories
Material	70 x 70 x 30 mm
Resilience	bis 200 kg je Weight Plate Pin
Width	360 mm
Height	2035 mm
depth	400 mm
diameter	Ø 50 mm
Weight	approx. 46 kg
Color	Black, fine texture, powder-coated / matte chrome
Certification	Studio certification - according to EN 20957 I.II.IV Class S
