ATX® Cable Pull Tower - Single 90 kg
€2,061
Product Code: 104ATX-CPT-800-S90
Brand: ATX
PRE ORDER
Delivery within 4-8 weeks (needs to be paid in advance)

This product has a delivery fee of €20
We can assemble this product for €60 (on delivery only)

Description

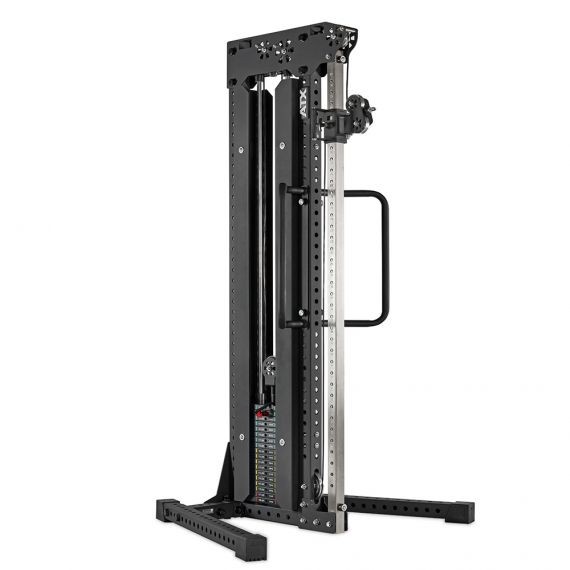

ATX ® Cable Pull Tower / Cable Pull Station - Single 90 kg



The ATX ®  Cable Tower impresses with its excellent running properties and first-class processing quality. The height-adjustable swivel castor unit can be easily adjusted with just one hand. This cable pulling station is completely free-standing and has a compact footprint of 105 cm in depth and 132 cm in width.



first class workmanship

excellent smooth running properties

hard chrome-plated guide rods made of solid material

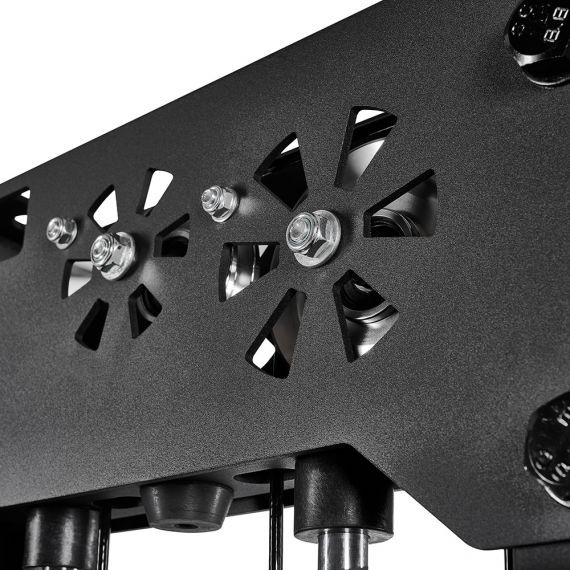

Aluminum pulleys with ball bearings

stretch-free steel cables with plastic sheath

two mounting brackets that can be attached to the device at any height

Completely free standing area without annoying struts

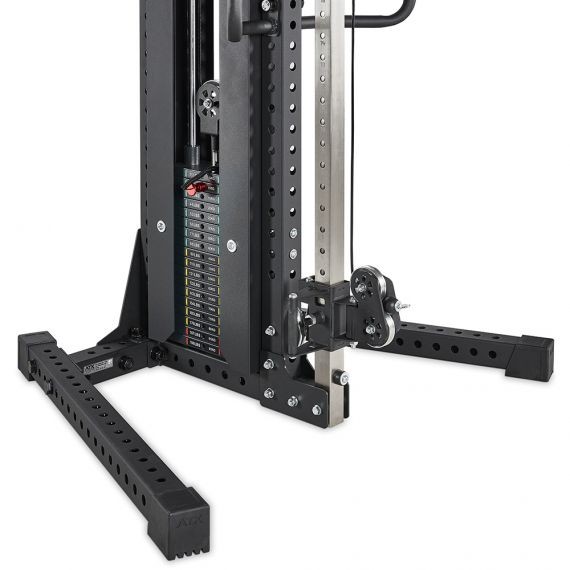

90 kg weight package with 5 kg steel plates, including protective covers

Gear ratio 2: 1

finer weight gradations possible with optionally available additional weights



Swivel castor unit 37-fold adjustable in height in 5 cm increments

easy one-handed operation

The generous roll swivel range of 170 ° enables inclined pulling angles

With engraved scaling for easy reproduction of the adjustable heights

adjustable minimum height 25 cm, maximum height 205 cm (approximate dimensions measured from the floor to the rope eyelet)

the maximum distance of the cable extensions is 260 cm

including snap hook

Quality Products Designed in Germany

Certified according to EN 20957 I.II.IV Class S



Pull handles are not included in the scope of delivery and must be ordered separately.

Optional additional and intermediate weights are available for finer weight gradations.





Safety

note : Cable towers should always be screwed to the floor for safety reasons in order to prevent the device from tipping over, which could be caused by improper handling. The dowels and screws required for this are not included in the scope of delivery.

Show bundle options    No

brand    ATX

Delivery unit     set

length   ---

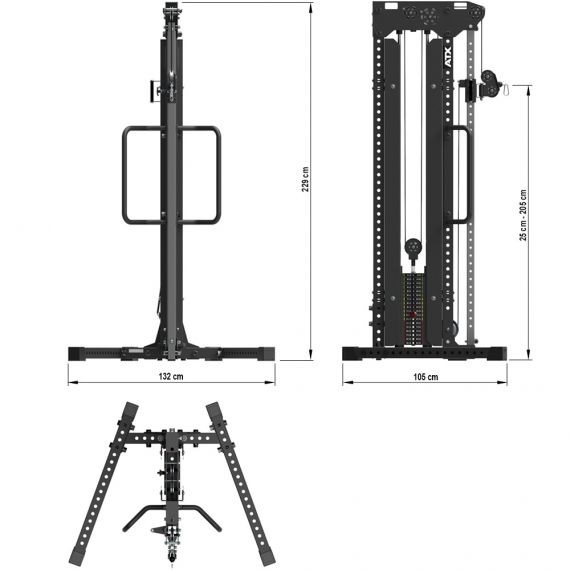

width    132 cm

height   229 cm

depth    105 cm

Weight 217 kg

Resilience           160 kg

colour   Black semi-gloss fine structure powder-coated

Certification      EN 20957 I.II.IV - p
